Key Takeaways
1. The Banana Pi BPI-R4 Pro features nine networking ports, including four Ethernet ports with speeds up to 2.5 Gbps and options for 10 Gbps connections.
2. It runs on the MediaTek MT7988A processor with four Cortex A73 cores, clocking up to 1.8 GHz, and supports up to 8 GB of DDR4 RAM.
3. Storage options include 8 GB of eMMC flash, expandable via microSD cards or M.2 SSDs, with USB 3.2 and USB 2.0 ports for external devices.
4. The board allows for WiFi module additions, including WiFi 7 compatibility, and has a SIM card slot for mobile network cards.
5. The BPI-R4 Pro is suitable for cluster networks and robotics projects but is not recommended as a desktop PC replacement; pricing and availability are yet to be announced.

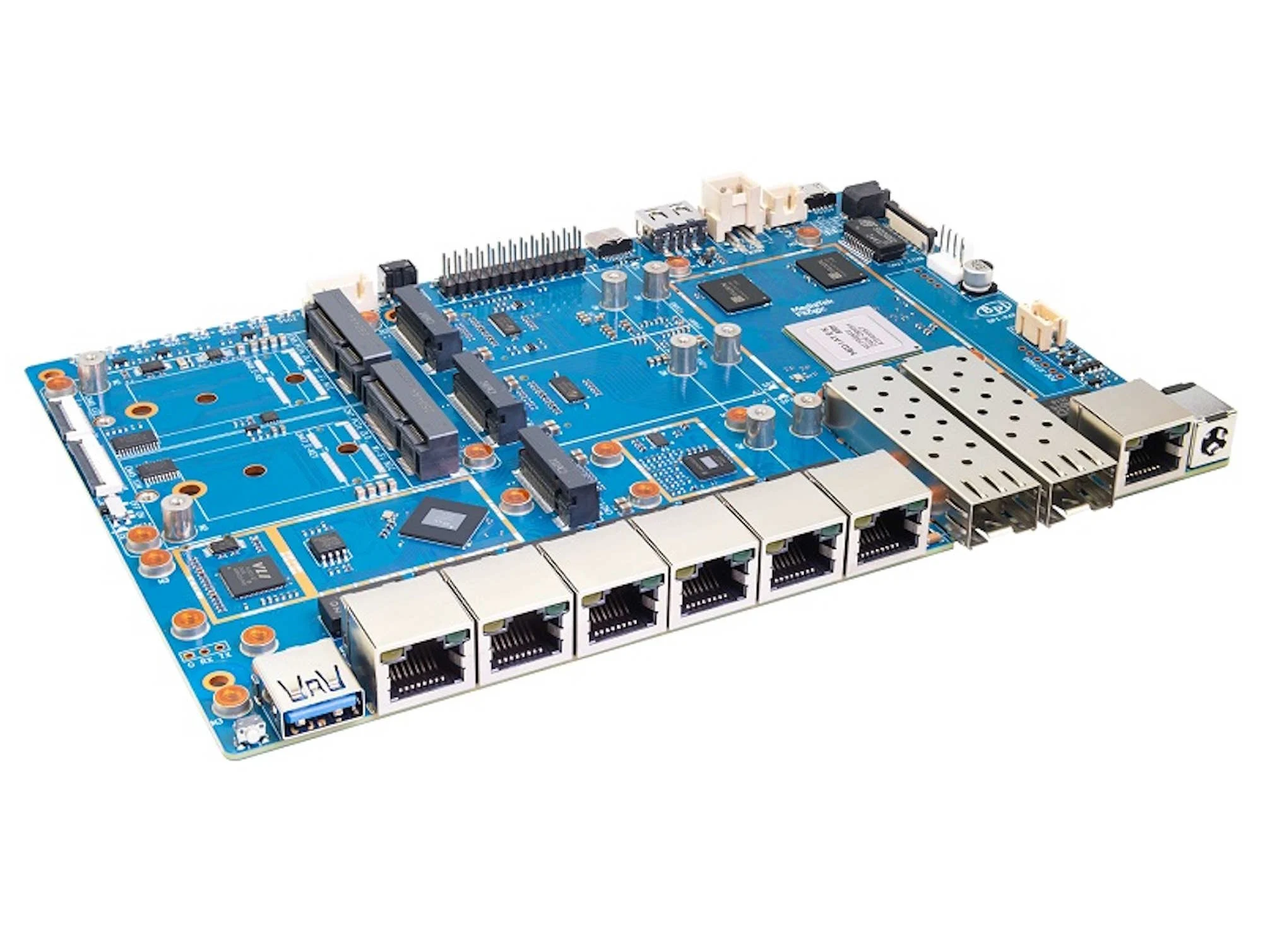

Banana Pi has launched a new and very capable single-board computer called the Banana Pi BPI-R4 Pro. This system stands out due to its impressive networking capabilities, featuring a total of nine ports, although some are combined and can’t all be used at the same time. There are four Ethernet ports that support a maximum transfer rate of 2.5 Gbps, along with both RJ45 and SFP connectors for connections up to 10 Gbps. It also allows for the addition of WiFi modules, including those compatible with WiFi 7, as well as mobile network cards. A SIM card slot is provided as well.
Specifications Overview

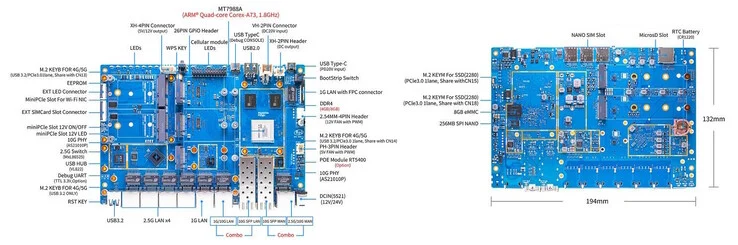

The BPI-R4 Pro runs on the MediaTek MT7988A, which includes four Cortex A73 cores that can reach clock speeds of up to 1.8 GHz. It can support up to 8 GB of DDR4 RAM, which is not bad at all. The eMMC flash storage is 8 GB, a feature that isn’t always standard. Users have the option to expand their storage using a microSD card or M.2 SSDs. For connecting external storage devices or peripherals, it has USB 3.2 and USB 2.0 ports available. However, it lacks an HDMI port, but this is easily fixed with a USB-to-HDMI adapter.
Use Cases and Pricing
The Banana Pi BPI-R4 Pro can be utilized in various applications, such as cluster networks and robotics projects. However, it probably won’t serve well as a desktop PC replacement. Details regarding its price and availability have yet to be announced.
