Waveshare Launches New Smart Home Displays with WiFi and Bluetooth

Key Takeaways

1. Waveshare introduced two new smart displays: ESP32-P4-WIFI6-Touch-LCD-4C (4 inches, 800 x 800 pixels) and ESP32-P4-WIFI6-Touch-LCD-3.4C (3.4 inches, 720 x 720 pixels).
2. Both models feature touch interaction and brightness levels of 300 nits (4C) and 350 nits (3.4C).
3. They are powered by ESP32-P4 core and ESP32-C6-Mini-1 module, supporting WiFi 6 and Bluetooth 5 LE connections.
4. Users can connect external speakers, sensors, and actuators via a 40-pin header, and they include a microSD card slot for media storage.
5. The displays can be used in various projects, including smart home interfaces, vehicle metrics, and PC monitoring, with prices ranging from $65 to $75.

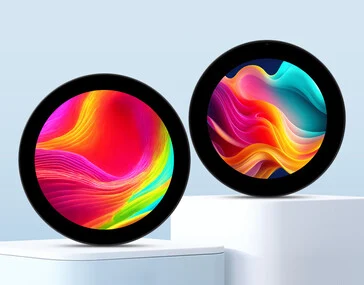

Waveshare has introduced two fresh smart displays that do not come with pre-installed software. The models are named ESP32-P4-WIFI6-Touch-LCD-4C and ESP32-P4-WIFI6-Touch-LCD-3.4C. They vary in size, featuring round screens with diagonals of 4 inches and 3.4 inches, respectively. The resolutions are 800 x 800 pixels for the larger model and 720 x 720 pixels for the smaller one, while the brightness levels are noted to be 300 nits and 350 nits. Both of these displays also allow for touch interaction.

Specifications and Features

Moreover, these circuit boards come with an ESP32-P4 core alongside an ESP32-C6-Mini-1 module, enabling wireless connections through WiFi 6 and Bluetooth 5 LE. As is common with Waveshare’s smart home displays, they are powered and programmed through a USB Type-C connection. Users can attach a battery to the device’s real-time clock via a header, and a microSD card slot is available for storing images or other media to display on the screen.

Connectivity Options

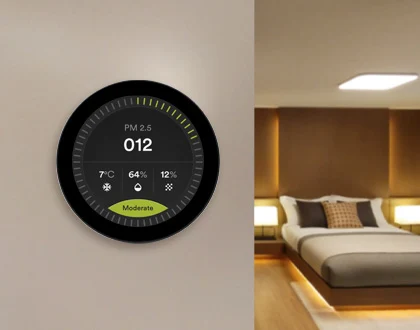

You can connect external speakers, but the Waveshare ESP32 already has built-in microphones with echo reduction. Additionally, you can connect external sensors and actuators using a 40-pin header. These displays are incredibly flexible and can serve various project needs. For instance, they can function as customizable smart home interfaces, but Waveshare has also shown how they can be utilized in vehicles to display speed and additional metrics. Furthermore, they can be linked to a gaming PC to monitor system load and other parameters. The official pricing for these models ranges from $65 to $75.
