Key Takeaways
1. Sony has introduced the IMX927 square camera sensor, measuring 39.7 mm diagonally, aimed at industrial machine vision and video cameras.
2. The sensor features a high resolution of 10,272 × 10,272 pixels (about 105 MP) and can achieve speeds of up to 113 fps at 8-bit color depth.
3. The IMX927 includes a global shutter, eliminating rolling shutter effects, and has an integrated HDR function for enhanced dynamic range without affecting frame rates.
4. Two versions of the sensor are available: one with a Bayer filter for color and one without for monochrome, which captures more light.
5. The sensor maintains compatibility with existing mounts used in 16 other sensors, with cropped variants like the IMX937, IMX298, and IMX929 offering different resolutions and frame rates.
Sony has introduced a new square camera sensor with a diagonal size of 39.7 millimeters, making it only a bit smaller than a full-frame sensor. The Sony IMX927 is mainly designed for use in industrial settings, particularly in machine vision for automated mass production, but it could also be suitable for video cameras.
Exciting Technology
It’s still uncertain if this sensor can be integrated into existing cameras, but the technology is definitely intriguing. The IMX927 boasts a resolution of 10,272 × 10,272 pixels, which translates to about 105 MP, and can operate at speeds of up to 113 frames per second at an 8-bit color depth. Alternatively, it can achieve 73 frames per second with 12-bit color depth—all thanks to a global shutter. This feature allows all pixels to be read at once, eliminating the rolling shutter effect that can occur with line-by-line readings.
Versatile Options
The sensor comes in two versions: one with a Bayer filter as a color sensor, and another without a filter, which is a monochrome sensor that can capture more light. The Sony IMX927 is also equipped with an integrated HDR function that enhances dynamic range without needing to combine multiple images, so the effective frame rate remains unaffected when using HDR.
Compatibility and Variants

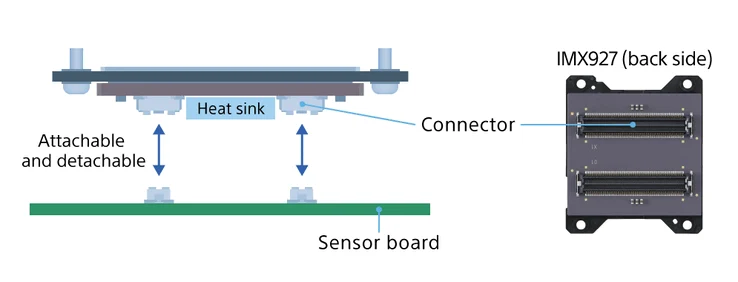

Sony has maintained the same mount used across 16 other sensors in this series, meaning that existing setups could potentially be upgraded. Additionally, Sony has released cropped variations of the IMX927, including the IMX937, which has 105 MP and a maximum frame rate of 56 fps. There are also the smaller IMX298 and IMX929, with resolutions of 64 MP and 51 MP, respectively, but they can achieve impressive frame rates of up to 138 fps and 225 fps. More information about the Sony IMX927 is available in the official press release.
Sony | Press release
Source:
Link
