Key Takeaways
1. The Rock 5T measures 3.23 x 4.33 inches and is a compact single-board computer with versatile applications.
2. It features two M.2 slots for SSDs, pre-installed eMMC storage, and an onboard microSD card slot.
3. The device offers 4 to 32GB of LPDDR5 RAM and is powered by the Rockchip RK3588 SoC with impressive processing capabilities.
4. It supports multiple display options, including dual HDMI ports for 4K/8K output, DisplayPort via USB Type-C, and can connect to three monitors simultaneously.
5. The Rock 5T includes advanced connectivity options like Wi-Fi 6, Bluetooth 5.2, and two 2.5GbE ports, along with camera and sensor connections via MIPI-CSI.

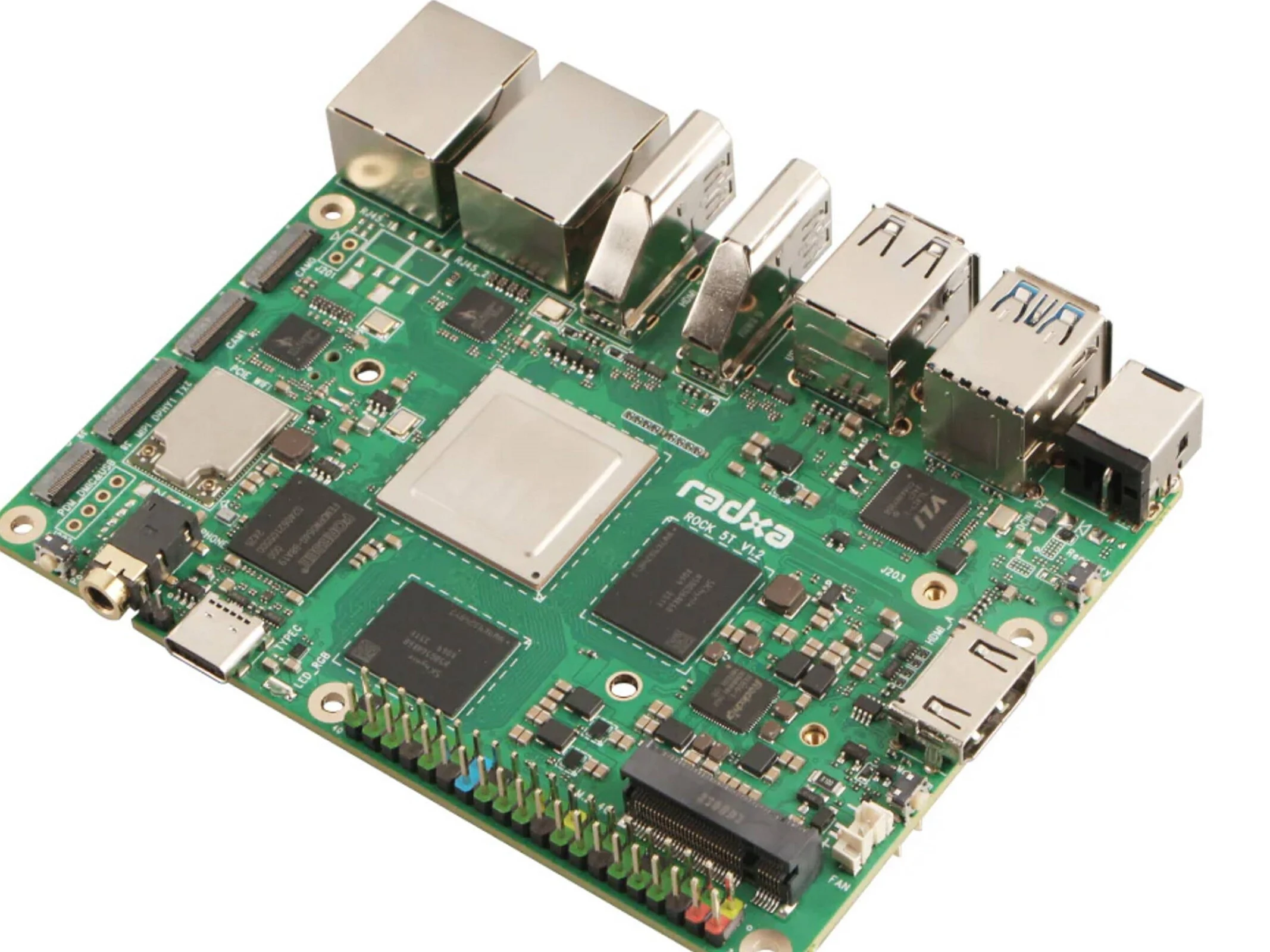

The Rock 5T is a latest single-board computer that brings the functionalities of the Rock 5 ITX in a smaller size, measuring only 3.23 x 4.33 inches. This device is really well-equipped for an SBC and can be applied in a variety of scenarios.

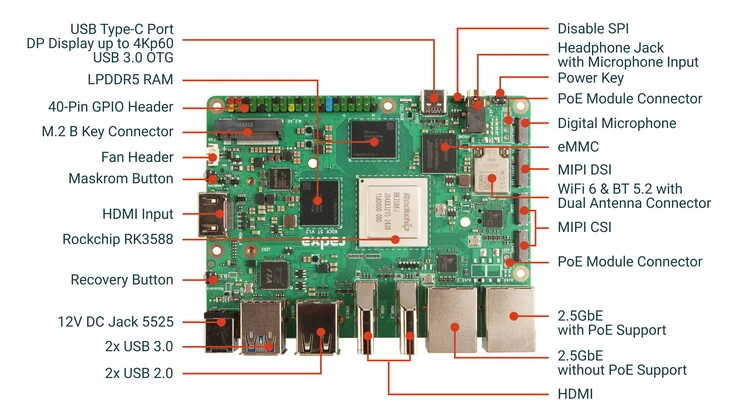

M.2 Slots and Storage Options
This competitor to Raspberry Pi 5 features two M.2 slots, each linked with two PCIe 3.0 lanes, which is pretty rare for an SBC. These slots allow for two SSDs, but the Rock 5T comes with pre-installed eMMC storage depending on the model variant. Additionally, there’s an onboard microSD card slot.
RAM and Processing Power
The small device has 4 to 32GB of LPDDR5 RAM, based on the configuration you choose. It runs on the Rockchip RK3588 SoC, which has four Cortex-A76 and Cortex-A55 cores. The built-in NPU can deliver performance of up to 6 TOPS.
Display and Connectivity Features
You can connect external displays through two HDMI ports that support resolutions of 4K and even 8K. Additionally, there’s DisplayPort via USB Type-C and an MIPI-DSI interface available, with the latter supporting Full-HD screens at up to 60Hz. In total, the Rock 5T can connect to three monitors and also provides an HDMI input.
For accessories or external storage, there are two USB 3.2 Gen 1 Type-A ports. In terms of wireless capabilities, it supports Wi-Fi 6 and Bluetooth 5.2. Furthermore, the alternative to the Raspberry Pi 5 can also connect to networks through two 2.5GbE ports that support PoE.
Camera and Sensor Connections
You can attach cameras via MIPI-CSI, and as is typical, there’s a pin header for linking sensors and actuators. Arace Tech is currently offering the 16GB RAM version of the new Radxa Rock 5T for about $140. Sadly, the commercial version that features the Rockchip RK3588J, Wi-Fi 6E, and Bluetooth 5.3 is not available at this time.
