Key Takeaways
1. Compact Design: The NanoCluster can hold up to seven computing boards, including models from Sipeed and Raspberry Pi, but may require adapters for compatibility.
2. Power Options: The system can be powered via USB-C with a maximum of 65 watts or through PoE over Ethernet, supporting Gigabit speed connections.
3. User-Friendly Features: Each board is individually accessible through UART for easier troubleshooting, and it includes a USB-A port and HDMI output.
4. Cooling System: A built-in 60mm fan ensures proper cooling for all connected units, enhancing performance and reliability.
5. Affordability and Availability: The NanoCluster starts at $45, with Raspberry Pi CM modules priced at $89, making it an accessible solution for enhancing computing capabilities.
Cluster systems make use of several identical or at least quite similar units to boost performance across different uses. The level of performance improvement relies on the specific application and how well the components collaborate with each other. In this regard, Sipeed has introduced a fresh solution for creating such a cluster, and it stands out for being notably compact.
Compact Design

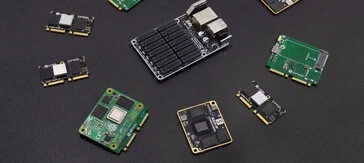

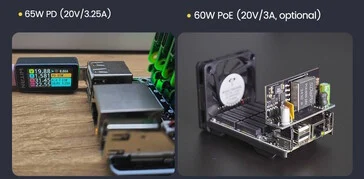

The NanoCluster can hold as many as seven compact computing boards from different brands. It specifically supports the Sipeed Longon Pi 3H, Sipeed M4N, Raspberry Pi CM4, and Raspberry Pi CM5. Compatibility does have its limits: the Raspberry Pi modules need an adapter, and the power supply could be a limiting factor. The board can be powered through USB-C with a maximum capacity of 65 watts. Alternatively, power can also come via PoE over Ethernet. The Ethernet port is capable of handling Gigabit speed connections.
User-Friendly Features

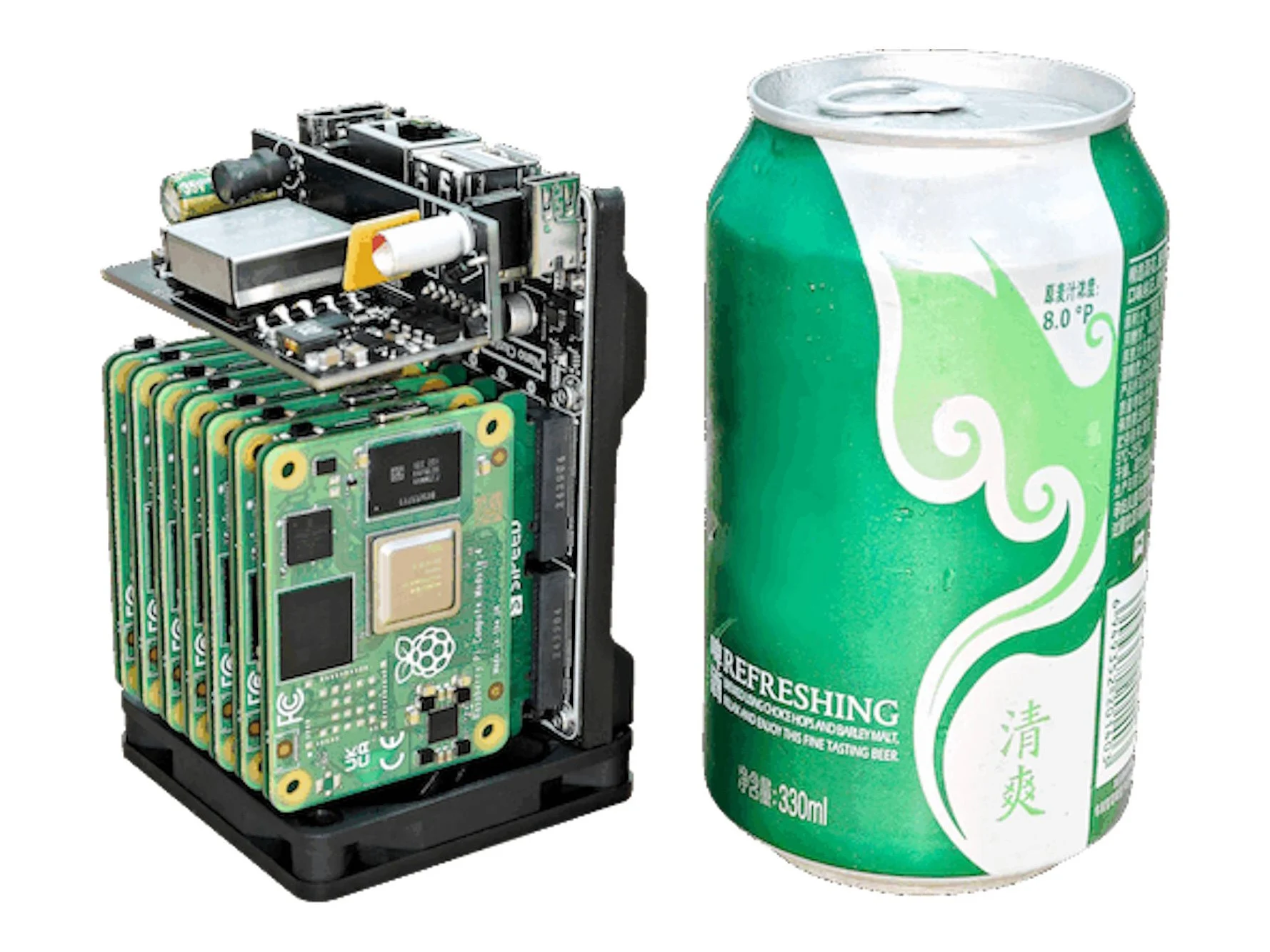

There is a USB-A port included, which, similar to the HDMI output, is linked to the board in the first slot. Every board can be accessed individually through UART, which should simplify the troubleshooting process. A fan, measuring 60 millimeters in diameter, is built right into the board to ensure proper cooling for all connected units. When fully loaded, the system’s dimensions are 100 x 60 x 60 millimeters, and it is available for purchase now starting at a base price of $45. If you want to use the Raspberry Pi CM modules for compatibility, the starting price is $89.
New Possibilities
Sipeed’s new offering opens up more avenues for users looking to enhance their computing capabilities with a compact solution. With the blend of various boards and efficient cooling, this cluster system is tailored for those who need a reliable and powerful setup. It’s an exciting time for developers and tech enthusiasts who are interested in maximizing their performance through innovative hardware solutions.
