Key Takeaways
1. The Muse Pi Pro uses a RISC-V processor (SpacemiT M1) with 8 CPU cores and an NPU, unlike the Raspberry Pi which uses ARM architecture.
2. It offers memory options of 8GB or 16GB LPDDR4X RAM and storage options of 32GB or 64GB eMMC, along with support for M.2 SSDs.
3. Connectivity features include Gigabit Ethernet, WiFi 6, Bluetooth 5.2, and a mini PCIe slot for a cellular modem.
4. The board has four USB 3.0 Type-A ports, one USB 2.0 Type-C port, and supports MIPI-CSI and MIPI-CSO for displays and cameras.
5. The Muse Pi Pro is compatible with various Linux distributions, including Ubuntu, and was initially priced around $120.

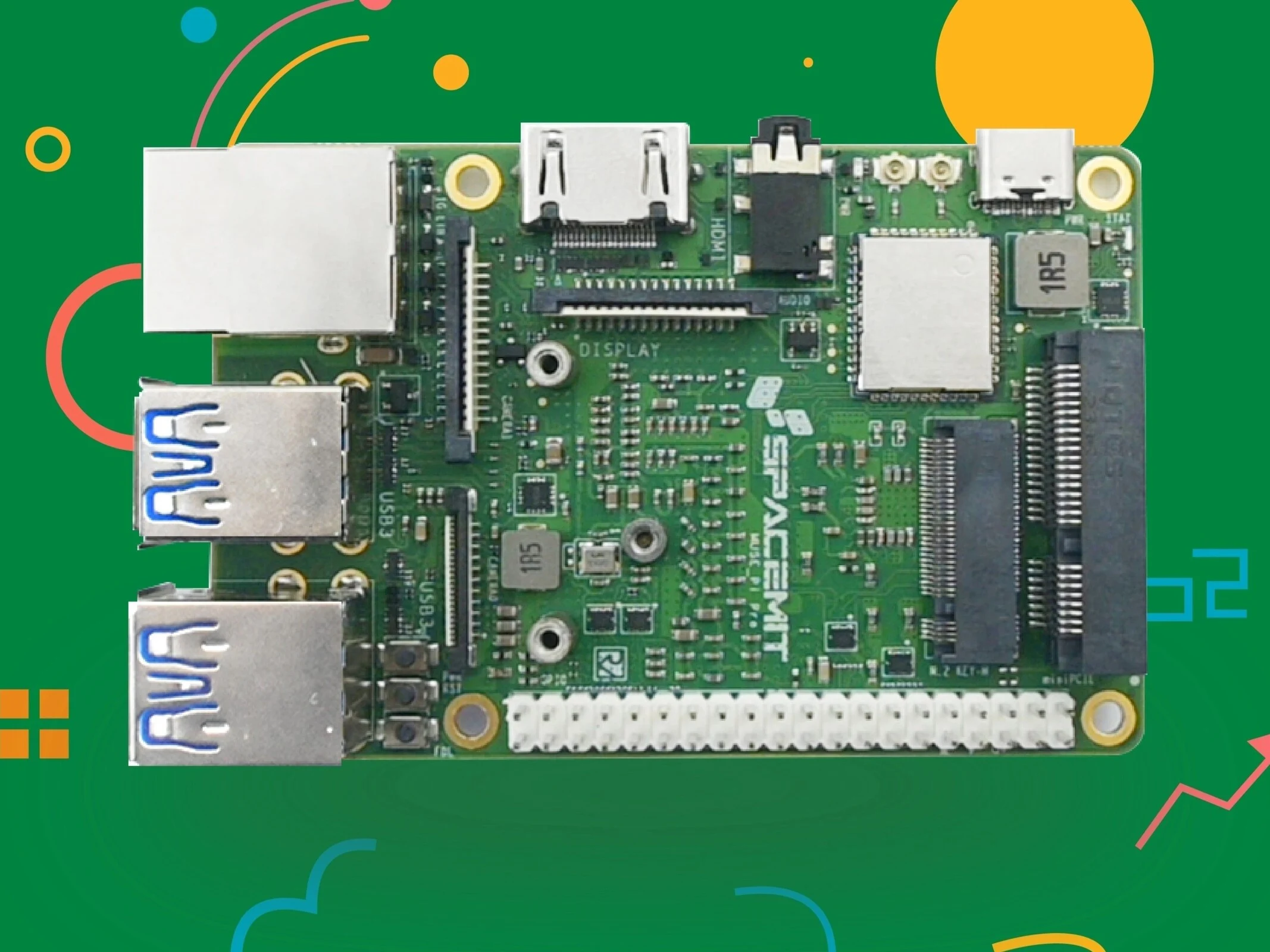

The Muse Pi Pro is a fresh single-board computer that resembles the popular Raspberry Pi and might be a good substitute for it. But, there is a key difference that sets them apart. Unlike the Raspberry Pi which uses ARM architecture, the Muse Pi Pro runs on a RISC-V processor. Specifically, this board is driven by the SpacemiT M1, featuring 8 CPU cores and a Neural Processing Unit (NPU) that delivers a performance of 2 TOPS, making it ideal for AI tasks.
Memory and Storage Options
Depending on which model you choose, the Muse Pi Pro comes with either 8GB or 16GB of LPDDR4X RAM. Storage options include eMMC 4.1 with either 32GB or 64GB capacities. This compact computer also supports an M.2 2230 SSD, and you can connect a cellular modem using the mini PCIe 2.1 slot, which has one lane. Additionally, the Muse Pi Pro is equipped with Gigabit Ethernet, WiFi 6, and Bluetooth 5.2 for connectivity. Dimensions for the board are around 3.3 x 2.2 inches, and it includes a 40-pin GPIO header for linking sensors and actuators.
Ports and Compatibility

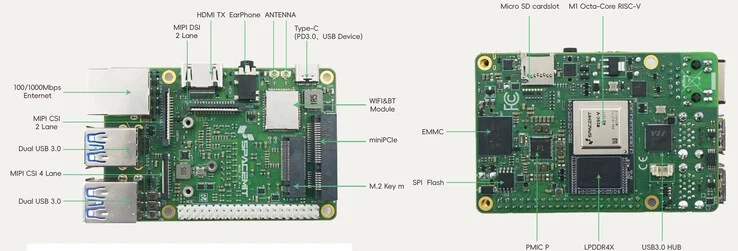

There are four USB 3.0 Type-A ports on the Muse Pi Pro, along with one USB 2.0 Type-C port. You can connect displays and cameras via MIPI-CSI and MIPI-CSO interfaces. The single-board computer supports a range of Linux distributions, including Ubuntu, and it receives power through the USB Type-C connection. The Muse Pi Pro was briefly available on AliExpress with prices starting at about $120, but that listing has been removed since then.
