Key Takeaways
1. Innovative Cooling Technology: The RedMagic 11 Pro features the world’s first water-cooling technology in a smartphone, utilizing liquid cooling, a high-speed fan (24,000 RPM), and a large vapor chamber to maintain optimal performance.
2. Striking Design: The phone has a unique design with visible dual-colored liquid through the back panel, creating an eye-catching visual effect, enhanced by an active cooling fan that can extinguish a flame.
3. Cooling System Components: The AquaCore Cooling System includes a piezoelectric ceramic micropump, active fan, and flexible tubes filled with liquid, all integrated into a compact unit for efficient heat management.
4. Durability Features: The RedMagic 11 Pro has a screen rated at level six on the Mohs hardness scale and an IPX8 rating for dust and water resistance, although the fan vent design may allow some dust ingress.
5. Performance Considerations: The cooling duct design raises questions about the efficiency of heat dissipation, particularly regarding the limited contact points between the cooling loop and the metal duct surrounding the Snapdragon 8 Elite Gen 5 processor.
Nubia has just introduced the RedMagic 11 Pro to worldwide markets, marking it as the first smartphone in the world to come with water-cooling technology. This innovative cooling system utilizes liquid cooling alongside a compact fan that can spin at a remarkable 24,000 RPM, and a large vapor chamber to keep the Snapdragon 8 Elite Gen 5 processor cool even during intense usage. If you’re curious about how Nubia managed to fit all these features into a phone that’s only 8.9 mm thick, JerryRigEverything has all the details.
Eye-Catching Design and Functionality

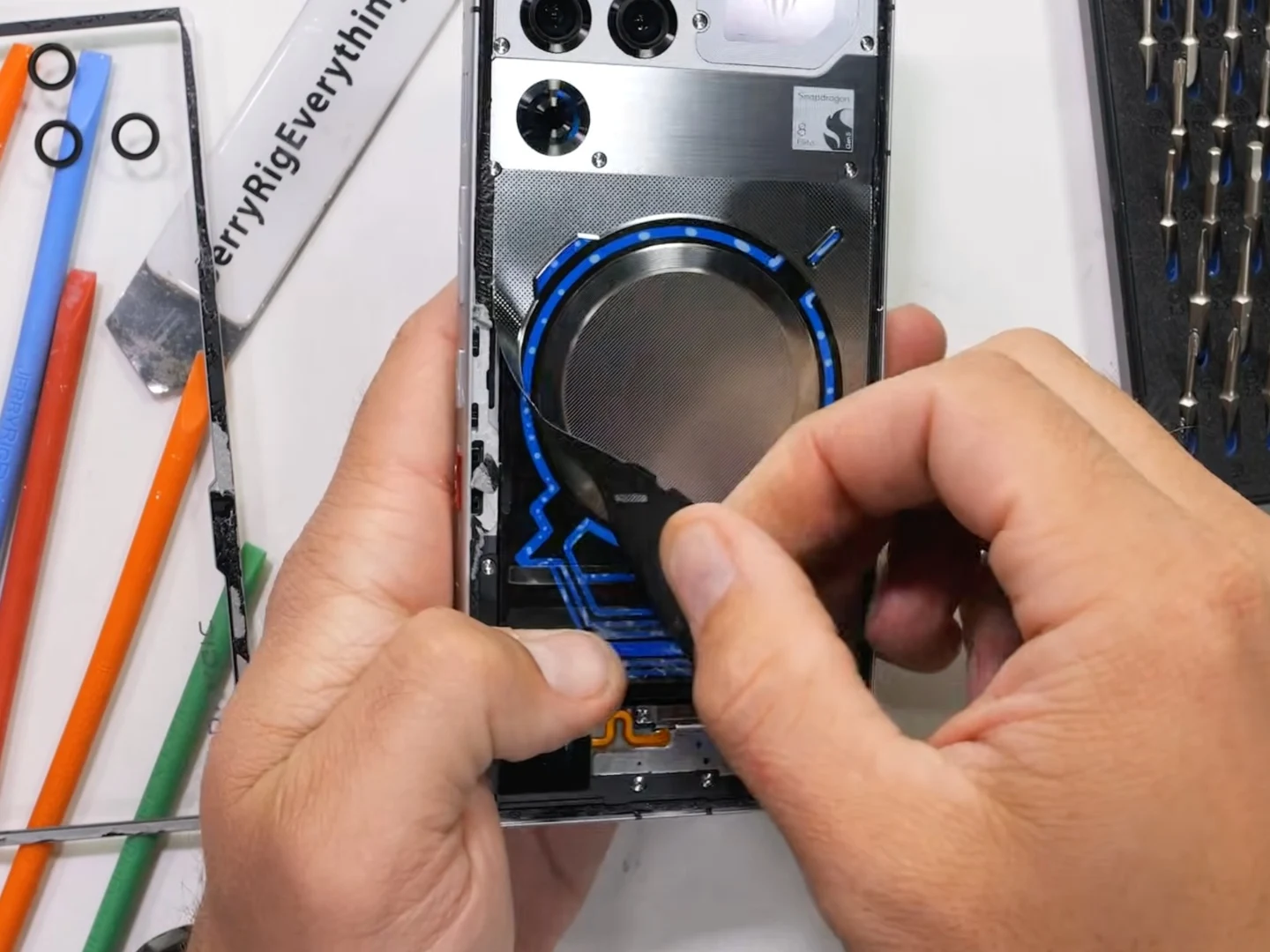

The RedMagic 11 Pro made its way to Zack’s workspace, where the dual-colored liquid inside the phone is clearly visible through the back panel. The YouTuber suggests that a type of oil might have been mixed with the coolant to create this flowing visual effect. The active cooling fan expels air through a side vent and is powerful enough to extinguish a lighter’s flame. Upon disassembling the back glass, the cooling technology is revealed, showcasing an impressive setup. This includes the AquaCore Cooling System, a piezoelectric ceramic micropump, the active fan, and the wireless charging coil, all part of a single unit that can be peeled away to expose the flexible tubes filled with liquid.
Cooling Efficiency and Performance
The cooling duct surrounds the Snapdragon 8 Elite Gen 5 and the 3D vapor chamber. Interestingly, only the ends of the cooling loop make contact with the metal duct, which is designed to draw heat away from the chip. It raises the question of how the performance might change if more of the cooling loop were in contact with the ducting.
Durability and Protection
Regarding the usual aspects of the RedMagic 11 Pro, the screen shows scratches at a level six on the Mohs hardness scale, with more pronounced grooves appearing at level seven. The sides of the device are made from aluminum and can be easily scratched with a box cutter, which is common for phones with a similar build. Additionally, the 11 Pro boasts an IPX8 rating for dust and water resistance, despite having a vent for the fan that connects to the internal components. While dust may still enter, mesh panels are placed over the openings to help reduce this issue.
