Key Takeaways
1. Quixant specializes in advanced hardware platforms for casino gaming, sports betting, and retro arcade markets, including kiosk and cabinet solutions.
2. The latest IQON3 mini PCs feature AMD Ryzen PRO 8000 APUs with integrated Radeon 7X0M iGPU and a unique rugged, passively-cooled chassis.
3. IQON3 models support up to 64 GB of RAM and offer various storage options, including M.2 PCIe 4.0 NVMe SSD and multiple CFast and SATA3 slots.
4. The port configuration includes modern and traditional serial ports, with multiple USB connections and PCIe slots tailored for gaming cabinets.
5. Additional features include HD audio 7.1, NVRAM, TPM 2.0 security, and a metal case with physical security enhancements.

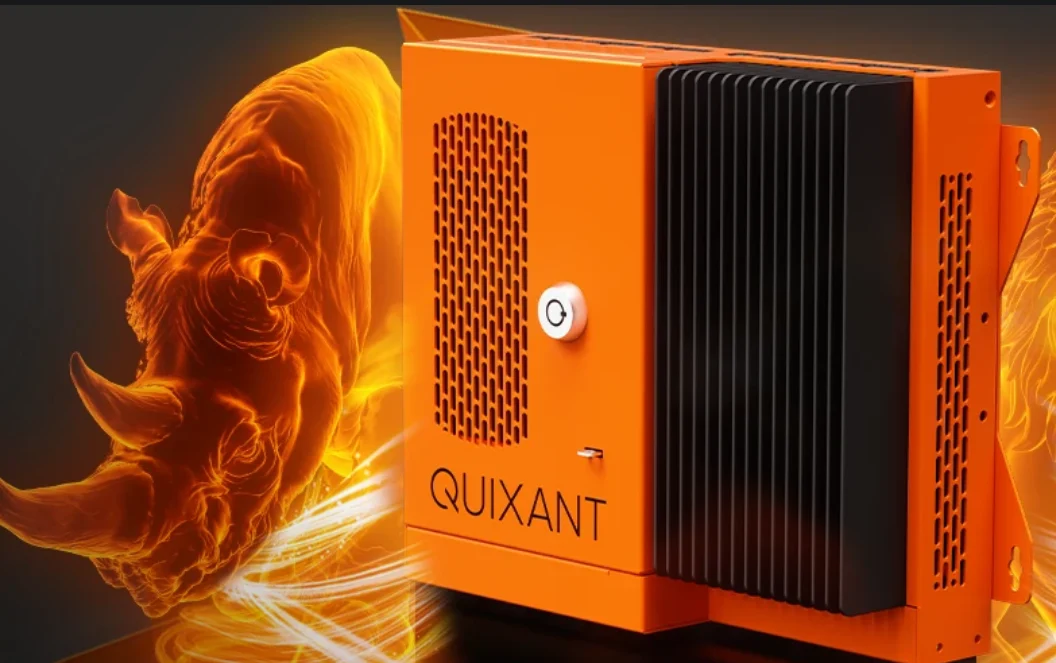

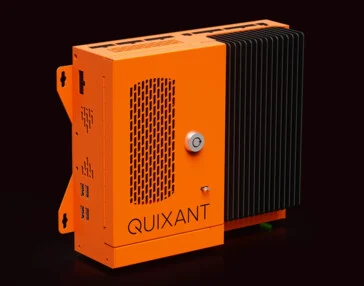

Quixant is all about providing cutting-edge hardware platforms aimed at the casino gaming, sports betting, and retro arcade markets. Their offerings include kiosk and cabinet solutions, along with compact PCs like the IQON series that fit easily into cabinets. The newest members of this series, the IQON3 mini PCs, utilize AMD’s Ryzen PRO 8000 APUs equipped with integrated Radeon 7X0M iGPU. They also feature a unique rugged, passively-cooled chassis that sports a distinctive orange color.
Specifications and Features
The IQON3 models can accommodate up to 64 GB of RAM via two DDR5-5600 SO-DIMM slots. For storage, these devices boast the typical M.2 PCIe 4.0 NVMe SSD slot, along with 2 CFast 2.0 slots, 2 SATA3 slots, and as much as 128 Kb of user EEPROM.
The port setup is specifically designed for the gaming cabinet sector, incorporating both contemporary and a range of traditional serial ports. For the modern ports, there are 4x USB-A 3.2, 4x USB 2.0, plus additional internal extensions for more USB-A 3.2 and USB 2.0 connections, and 2 USB 2.0 headers. Additionally, the system includes 2 PCIe slots for GbE NICs. The serial communications consist of 6 ports that support SAS, JCM, RS485, and RS232, as well as 1 SPI header, 1 I2C interface, and 2 iButton interfaces.
Audio and Additional Features
On the audio front, the IQON3 includes a standard HD audio 7.1 controller and features 4-Ohm stereo amplified outputs that deliver 15 W per channel.
Some other notable attributes feature 4 MB of protected NVRAM, compatibility with 6 LED strips, TPM 2.0 for security, and a unique electronic serial number for digital protection. Physical security is enhanced with a metal case that has a keylock, active monitoring for any changes to write protection, and a hardware AES256 engine.
