Key Takeaways
1. The Orange Pi RV is built on the StarFive JH7110 RISC-V SoC with four CPU cores at 1.5 GHz.
2. It can encode H.265 videos up to 1080p/30 FPS and decode H.264 or H.265 videos at 4K/60 FPS.
3. The board includes standard I/O ports like a 40-pin GPIO header, Gigabit Ethernet, HDMI, and four USB Type-A ports.
4. It supports Bluetooth 5.0 LE and Wi-Fi 5.0, with a single antenna pedestal included.
5. Pricing starts at $41.99 for the 2 GB RAM model and $52.99 for the 4 GB version on Amazon.
The Orange Pi RV has been in the works for quite some time. In fact, Orange Pi just began selling the RV2 last month. One might think that the RV2 would take the place of the RV, but Orange Pi has now started taking orders for the RV as well.
Specifications and Features
To summarize, the RV is built on the StarFive JH7110, a RISC-V SoC that has four CPU cores running at 1.5 GHz. It features a VPU that can encode H.265 videos up to 1080p/30 FPS and decode H.264 or H.265 videos at resolutions of up to 4K/60 FPS. Additionally, the JH7110 is equipped with an Imagination BXE-4-32 GPU that supports various APIs, including OpenCL 1.2, OpenGL ES 3.2, and Vulkan 1.2.
Design and Connectivity

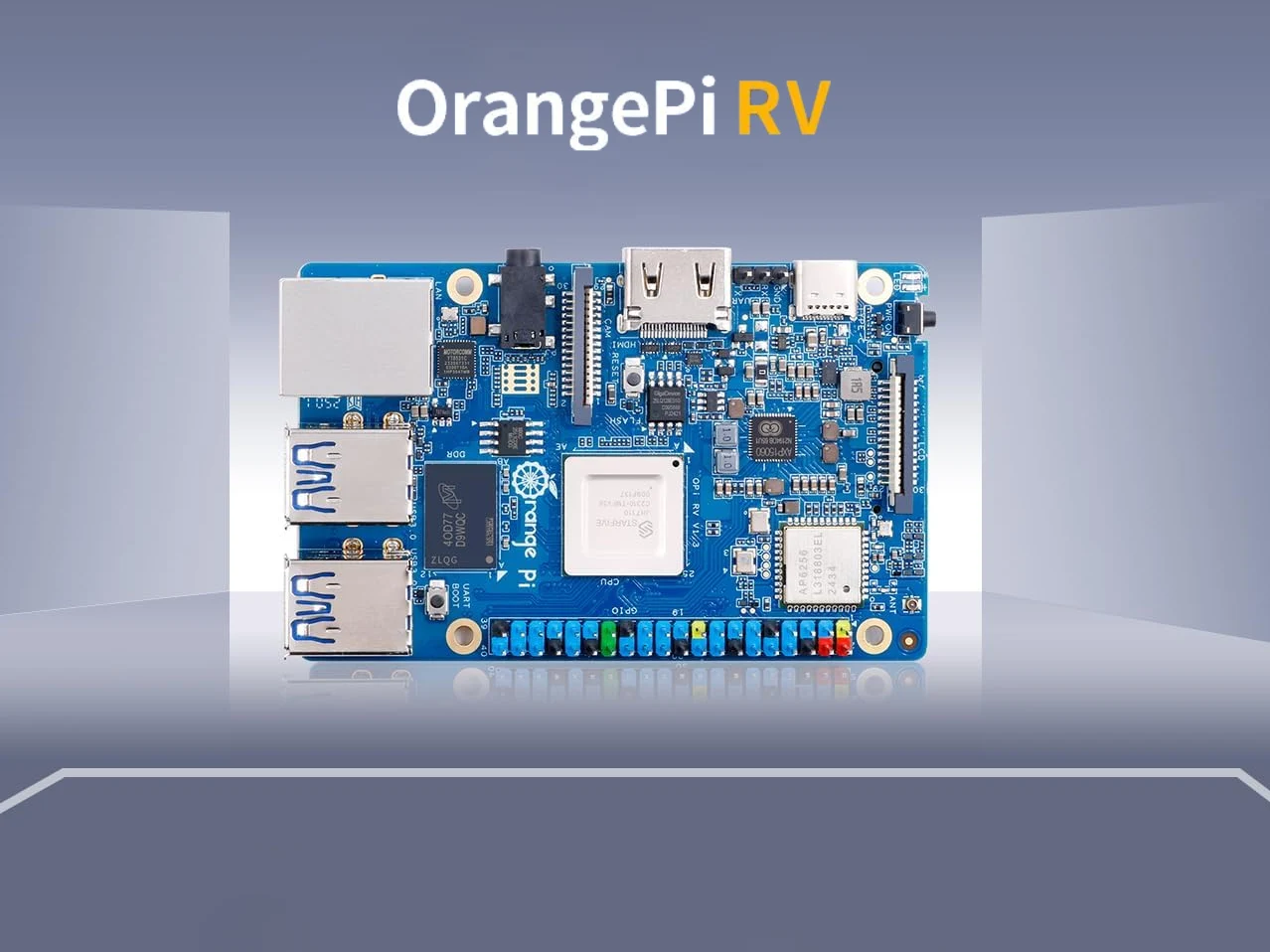

The single-board computer measures 89 x 56 mm and comes with standard I/O ports, such as a 40-pin GPIO header, Gigabit Ethernet, HDMI, and four USB Type-A ports. As seen in the image below, the Orange Pi has also provided a MicroSD card slot along with an M.2 2280 (M-Key) slot right next to it. The RV supports Bluetooth 5.0 LE and Wi-Fi 5.0, for which Orange Pi has incorporated a single antenna pedestal.
Pricing Options
At present, the Orange Pi RV begins at $41.99 for the model with 2 GB of RAM on Amazon. Alternatively, there is a 4 GB version available for $52.99. Comparatively, the company offers 2 GB and 8 GB options for $30 and $49.90, respectively, on AliExpress. For further information, please check Orange Pi’s official website.
Source:
Link
