MSI MS-CF16 Fanless SBC with Intel Twin Lake CPUs and Ports

Key Takeaways

1. The MSI MS-CF16 V3.0 is a compact Single-Board Computer (SBC) designed for industrial and embedded applications following the Pico-ITX format.
2. It offers multiple CPU options, including Intel N97, Intel N150, and Intel Atom x7433RE, with the 4-core N97 being the strongest based on benchmarks.
3. The SBC supports up to 16 GB of LPDDR5-4800 memory, which is soldered onto the board, and includes M.2 B, M.2 E, and SATA 3.0 connections for expansion.
4. Weighing only 300 grams and measuring 10.1 x 7.3 cm, it can operate without active cooling thanks to its built-in heatsink.
5. The MS-CF16 V3.0 is compatible with both Windows and Linux operating systems, making it versatile for various applications.

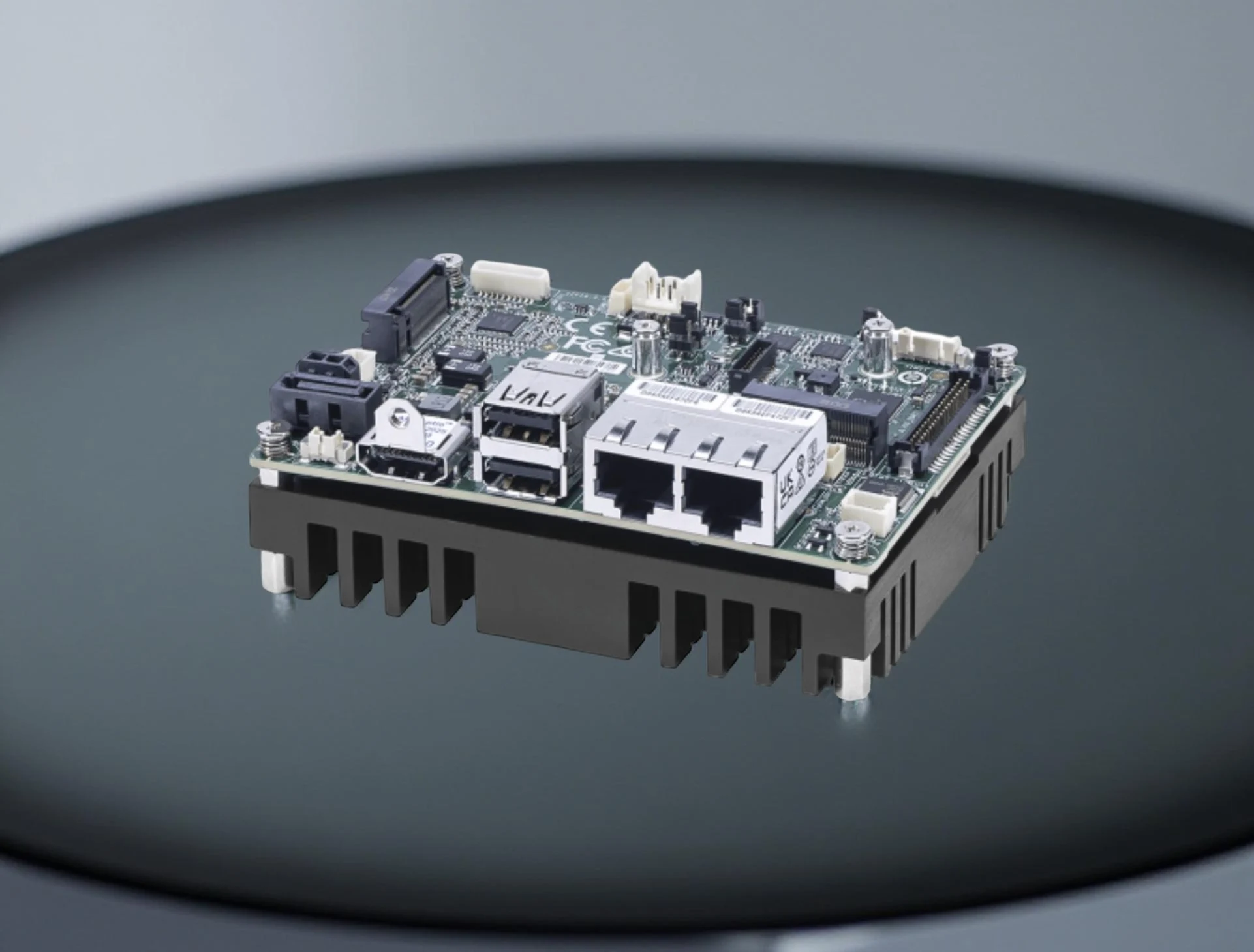

MSI has launched a new SBC (Single-Board Computer) called the MS-CF16 V3.0. This compact SBC follows the Pico-ITX design, enabling it to fit into tight spaces. It is designed for industrial and embedded applications and comes with various CPU options.

CPU Options

The MS-CF16 SBC can be configured with Intel’s N97, Intel N150, and Intel Atom x7433RE processors. The N97 and N150 are typically seen in budget-friendly mini PCs, like the GMKtec G3 mini PC (currently priced at $210 on Amazon), and deliver solid performance for simple tasks. On the contrary, the 9-watt Atom chip is seldom found in consumer devices and includes 4 cores that can reach speeds of up to 3.4 GHz. Among the available CPUs, the 4-core N97 is probably the strongest, based on synthetic benchmarks.

I/O Options and Memory

This SBC offers a good selection of I/O options, which is normal for its type. It supports memory of up to 16 GB of LPDDR5-4800, which is predictably soldered onto the board. For expansion, it features M.2 B, M.2 E, and SATA 3.0 connections. Below are the specifics of the I/O capabilities along with other important features:

Weighing only 300 grams and measuring 10.1 x 7.3 cm, the MSI MS-CF16 V3.0 SBC can function without any active cooling. It supports both Windows and Linux operating systems and comes equipped with a built-in heatsink for effective thermal management.
