Key Takeaways
1. The MSI MS-C910E Edge AI Box is designed for AI inference tasks and features a rugged, anti-vibration enclosure.
2. It supports Intel’s 12th, 13th, and 14th generation Core processors with a maximum of 96 GB DDR5-5600 RAM.
3. The device includes extensive connectivity options, such as 8 USB-A ports, 4 COM ports, and 4 2.5 GbE NICs.
4. It has a modular design allowing for three PCIe expansion cards and multiple storage options, including M.2 NVMe and SATA drives.
5. Pricing and availability information can be directly obtained from the MSI IPC branch.

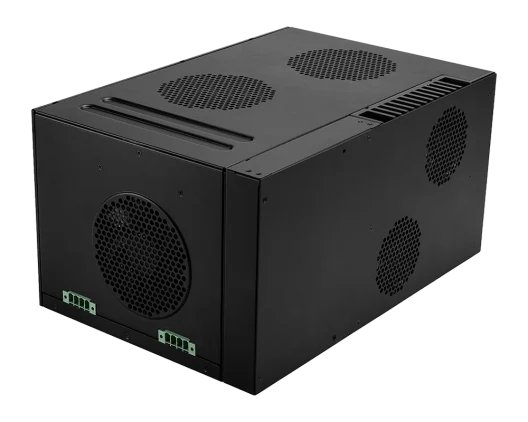

The industrial PC division of MSI is preparing the MS-C910E Edge AI Box, which is specifically made for AI inference tasks. This new device is housed in a tough, anti-vibration, shock-proof enclosure that appears to be inspired by ITX design, providing enough space for three PCIe expansion cards.
Basic Configuration
It seems like a barebones setup that includes an Intel R680E motherboard featuring an LGA 1700 socket. This supports Intel’s 12th, 13th, and 14th generation Core processors. Users can enhance the processor’s performance with up to 96 GB of DDR5-5600 RAM through two SO-DIMM slots, which also support ECC. For storage, it offers an M.2 NVMe/SATA slot along with two 2.5-inch SATA drive bays. Additionally, there are PCIe 4.0 slots (X16, X8, and X1) allowing for desktop-grade GPUs to be installed.
Tailored Connectivity
The port selection is specifically designed for industrial applications and includes 8x USB-A 10 Gbps ports, 4x COM ports, 4x 2.5 GbE NICs, 2x HDMI and 2x DisplayPort video outputs, dual audio jacks, and GPIO 8-bit / 5-35V / Isolation 1.3 KV connectors.
MSI has proposed a variety of industrial uses for this system, which includes:
Additionally, the compact and scalable casing is equipped with a front-facing smart fan, and there’s room for six more fans on the top and both sides. The dimensions of the case are 285 x 217 x 431.1 mm, and the weight of the barebones configuration is 11 kg.
