Key Takeaways
1. Compact Design: The Zotac Magnus One has dimensions of 10.7 x 5.0 x 9.8 inches with a volume of 8.5 liters, making it smaller than typical desktop PCs but larger than most mini PCs.
2. Powerful Performance: It features an Intel Core Ultra 7 265 processor, an integrated NPU, and an Nvidia GeForce RTX 5070 graphics card with 12GB GDDR7 VRAM, suitable for gaming.
3. Memory and Storage: Comes with 16GB of RAM and a 1TB SSD, supports up to 96GB of RAM, and has multiple M.2 slots for additional storage options.
4. Extensive Connectivity: Offers a range of ports including four USB 3.2 Gen 2 ports, four USB 3.0 ports (including Type C), a Thunderbolt 4 port, and supports WiFi 7 and dual Ethernet ports.
5. Efficient Power Supply: Powered by a 500W PSU with 80+ Platinum certification; cooling is achieved through standard fans and heatsinks, not water cooling.

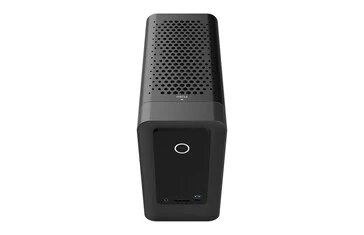

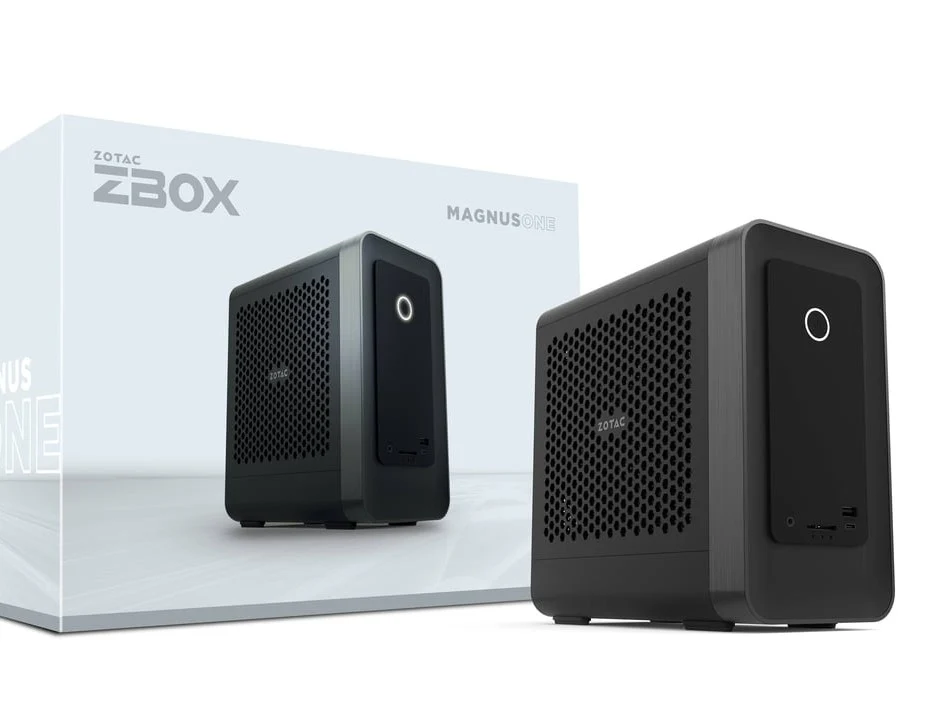

The Zotac Magnus One is a pretty small desktop PC, but it’s not as tiny as most other mini PCs you can find today. To be more precise, the Magnus One EU275070C has dimensions of 10.7 x 5.0 x 9.8 inches and its case volume is nearly 8.5 liters. Despite its size, it packs a punch with performance, featuring an Intel Core Ultra 7 265 and an integrated NPU. For graphics, Zotac chose the Nvidia GeForce RTX 5070, which has 12GB GDDR7 VRAM, making it a good option for gaming.
Specifications and Memory
Moreover, this Windows-based mini PC comes with 16GB of RAM and a 1TB SSD. The device has two DDR5 slots that can support a maximum of 96GB of memory. Additionally, there is a secondary M.2 slot that has four PCIe 4.0 lanes, while the primary M.2 slot is compatible with PCIe 5.0. The Magnus One also has space for one traditional 2.5-inch SATA hard drive or SSD, which is quite nice.
Connectivity Options

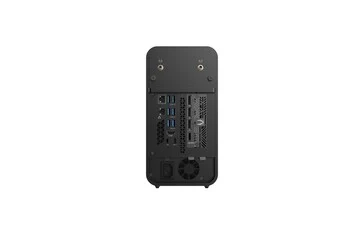

As for other features, it includes a 3-in-1 card reader, four USB 3.2 Gen 2 ports for connecting external storage devices, and four more USB 3.0 ports, one of which is Type C. There’s also a single Thunderbolt 4 port available. The mini PC supports WiFi 7, and if that is not enough, it has two Ethernet ports, one with 5GBit/s speed and the other with 1GBit/s. Powering the device is a 500W PSU that has an 80+ Platinum certification, and it utilizes standard fans and heatsinks for cooling—no water cooling here. Sadly, the new Zotac Magnus One mini PC with RTX 5070 isn’t available for sale yet.
