  • New Fanless Mini PC with 8-Core Intel CPU and Multiple Ports

    New Fanless Mini PC with 8-Core Intel CPU and Multiple Ports

    Key Takeaways

    1. The Aaeon Intelli TWL01 Edge mini PC features a fanless design and runs on Intel’s Twin Lake CPU range, specifically the Intel Core 3 N355 CPU.
    2. It offers strong multithreaded performance with eight cores and eight threads, comparable to an AMD Ryzen 7 4700U, suitable for moderate tasks.
    3. The compact size (15.2 x 12.4 x 3.9 cm) limits space for dedicated graphics, relying on built-in iGPUs for performance, and supports up to 16 GB of LPDDR5 RAM and 128 GB of eMMC storage.
    4. The mini PC includes an extra M.2 2280 slot for storage expansion and has respectable I/O options, with the ability to add a wireless connectivity module via an M.2 2230 slot.
    5. Pricing and availability details are unclear, and the product is targeted at industrial users rather than everyday consumers, with alternatives like the Acemagic V1 for general use.

    Aaeon is a well-recognized name in the field of edge computing and small industrial PCs. We have previously discussed several of their products, and it looks like we’re set to do it again. The newest addition to their line is the Intelli TWL01 Edge mini PC, which has a fanless structure and runs on Intel’s Twin Lake CPU range.

    Performance Specs

    The TWL01 Edge mini PC can be configured with an Intel Core 3 N355 CPU, which features eight cores and eight threads. Its architecture relies solely on Gracemont E-cores, offering multithreaded performance comparable to an AMD Ryzen 7 4700U, according to Geekbench benchmarks. In layman’s terms, this system should handle most moderate tasks quite well.

    Additional CPU configurations are also available, outlined below:

    Compact Design

    Measuring just 15.2 x 12.4 x 3.9 cm or about 6 x 5 x 1.5 inches, the Intelli TWL01 Edge mini PC is very small, which means it doesn’t have space for dedicated graphics. The built-in iGPUs will need to manage all the demanding tasks, but given its intended uses, they should perform adequately. It can support up to 16 GB of LPDDR5 soldered RAM, and for storage, it offers up to 128 GB of eMMC. There is also an extra M.2 2280 slot for those who want to expand their storage capacity.

    The I/O options are quite respectable, featuring the following ports:

    For wireless connectivity, users can utilize the mini PC’s M.2 2230 slot to add a third-party module.

    Pricing and Target Audience

    Details about pricing and availability remain uncertain, which is typical for an industrial mini PC. We suggest that interested readers contact Aaeon directly for more information.

    That being said, this mini PC is clearly not aimed at everyday consumers, so options like the Acemagic V1 (currently priced at $309 on Amazon) would be a good alternative for everyday tasks that are not overly demanding.

    Source:
    Link



    Tags: , ,
  • Intel Core 200E “Bartlett Lake-S” CPUs Leak: 12 Cores, 5.9 GHz Boost

    Intel Core 200E “Bartlett Lake-S” CPUs Leak: 12 Cores, 5.9 GHz Boost

    Key Takeaways

    1. The Intel Barrett Lake-S family has shifted focus from gaming to edge computing and industrial users.
    2. The processors are categorized into three TDP groups: 125 W, 65 W, and 45 W, with specific suffixes for each.
    3. The lineup includes models with varying core counts, including the Core 9 273PQE (12 P-cores), Core 7 253PQE (10 P-cores), and Core 5 223PQE (8 P-cores).
    4. All models, except the basic Core 5 213PE and PTE, include vPro support.
    5. These CPUs will not be available for consumer use, and compatibility issues with consumer motherboards are expected due to lack of BIOS updates.

    Although the Intel Barrett Lake-S family, which features P-cores only, was originally planned for gamers, the direction has shifted. The lineup is now aimed at edge computing and industrial users. However, this shift does not lessen the excitement around these products, especially with recent leaks revealing important details.

    Categories of the Intel Family

    Prominent leaker Jaykihn shared on X that the Intel Barrett Lake-S family is categorized into three TDP groups: 125 W, 65 W, and 45 W. The entry-level 45W models are identified with the PTE suffix, whereas the higher models carry the PE and PQE suffixes, respectively. Below is the full list of these processors:

    At the top of the range is the Core 9 273PQE, featuring 12 P-cores. Next comes the Core 7 253PQE, followed by the Core 5 223PQE, which has 10 and 8 cores, respectively. The lower TDP options have slower clock speeds, along with a more basic Core 5 213PE and PTE variant that share the same core count as the 223PE/PTE. Additionally, the 223 and 213 models come with a smaller integrated GPU (iGPU) of 24 EUs, while the other models have larger iGPUs that feature 32 EUs.

    vPro Support and Consumer Availability

    All SKUs include vPro support, except for the basic Core 5 213PE and PTE variants. As previously noted, these CPUs will not be available for consumer use. Even if some enterprising individuals manage to obtain them, they likely won’t be compatible with consumer motherboards. This issue arises because motherboard manufacturers like ASRock have already declined to provide necessary BIOS updates for these processors.

    Jaykihn on X

    Source:
    Link



    Tags: , ,
  • MSI MS-C927 Mini PC: 96GB RAM & Intel Core Ultra CPUs

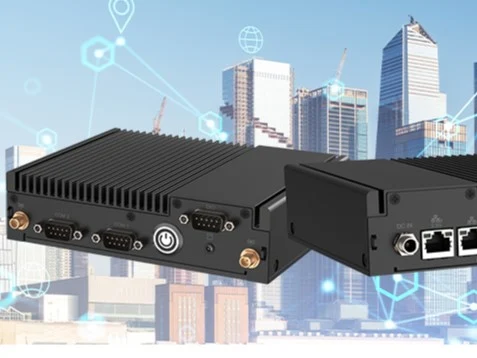

    MSI MS-C927 Mini PC: 96GB RAM & Intel Core Ultra CPUs

    Key Takeaways

    1. The MSI MS-C927 mini PC is designed for edge computing with a COM port for industrial equipment connectivity.
    2. It can be configured with Intel Core Ultra processors and supports up to 96GB of DDR5 RAM at 5,600MHz.
    3. The device can drive two 4K displays at 60Hz and includes two USB-A 3.2 ports and dual Ethernet ports (2.5G and 1G).
    4. It features multiple M.2 slots for expansion, passive cooling for silent operation, and can handle temperature ranges from 14 to 140 °F.
    5. The mini PC is built to withstand factory vibrations, but an official price and release date have not been announced.

    We have previously discussed mini PCs that are well-suited for edge computing. While most of these gadgets target industrial environments, they can also be appealing to everyday users with specific needs. Unlike many current consumer mini PCs, devices like the latest MS-C927 come equipped with a COM port, allowing connections to particular industrial equipment. This feature enables the MSI MS-C927 to oversee such machines via a network.

    Specifications and Performance

    According to information from the data sheet, this model can be configured with either an Intel Core Ultra 7 165U or an Intel Core Ultra 5 135U processor. It supports two DDR5 RAM slots that can accommodate up to 96GB of memory, operating at speeds reaching 5,600MHz. Additionally, the MSI mini PC is capable of driving two 4K displays at 60Hz through DisplayPort, though it doesn’t include HDMI or USB Type-C ports. On its rear side, you will find two USB-A 3.2 ports for connecting various accessories or peripherals. Network connectivity is offered through two Ethernet ports, with speeds of 2.5 and 1Gbit/s.

    Expansion and Cooling

    Moreover, the full-size M.2-2880 slot uses four PCIe 4.0 lanes, while the two shorter M.2 2242 and 2230 slots provide only a single lane each. These slots can be utilized for installing a WiFi module, and the required antennas are already preinstalled in the MS-C927 mini PC. The device can be powered using either 12 or 24 volts. Notably, it operates passively cooled, ensuring it runs silently, and can function in temperature ranges from 14 to 140 °F. Importantly, this new mini PC is designed to withstand vibrations often found in factory settings. However, MSI has not disclosed an official price or release date at this point.

    Source:
    Link

    Tags: ,
  • ASUS AAEON TGU8-EZBOX Mini PC: 11th-Gen Intel Core

    ASUS AAEON TGU8-EZBOX Mini PC: 11th-Gen Intel Core

    ASUS subsidiary AAEON Technology has introduced the TGU8-EZBOX mini host. This new mini PC is equipped with the 11th generation Core processors, including the Core i3-1115G4E, i5-1145G7E, and Core i7-1185G7E. The TGU8-EZBOX mini host is part of the de next series of mini PCs.

    Innovative Design and Features

    The de next form factor has seen considerable success recently, and the new mini host carries high expectations. The de next TGU8-EZBOX is the world's smallest edge PC featuring an embedded Intel Core processor. It provides fanless heat dissipation, operates quietly, and is protected from dust, making it ideal for digital signage and industrial applications.

    Versatile Applications

    The AAEON TGU8-EZBOX mini PC is perfect for edge computing, IoT gateways, and various other uses. It is based on the SBC single board computer with a passive radiator, measuring 95.5mm x 69.5mm x 42.5mm. The active radiator size is 95.5mm x 69.5mm x 45.4mm. This mini PC boasts a RAM capacity of 16GB (LPDDR4x 3733) and supports both active and passive cooling for the Core i3 version, while the Core i5 and Core i7 variants only support active cooling.

    Connectivity and Compatibility

    The ASUS AAEON TGU8-EZBOX mini host includes an M.2.2280 solid-state drive slot, a 2.5G network port, two USB-A ports with 10Gbps speed, and an HDMI 1.4b interface. It is compatible with multiple operating systems such as Windows 10 and Ubuntu 20.04.4, ensuring smooth integration with existing IT systems.

    The de next product lineup has expanded to incorporate single boards, specific expansion modules, and system-level solutions. Further details about the new ASUS AAEON de next TGU8-EZBOX mini host, including pricing, will be revealed later.
