Key Takeaways
1. The Alpon X4 Edge is a mini PC built on the Raspberry Pi Compute Module 4, integrated into a dedicated motherboard with user-friendly ports.
2. It features four external antennas for enhanced wireless connectivity, supporting 2.4GHz, 5GHz WiFi, Bluetooth, and 4G LTE.
3. The dimensions of the computer are approximately 4.4 x 3.9 x 1.3 inches, and it can be mounted on a DIN rail for industrial applications.
4. Additional connectivity options include two USB 2.0 ports, Gigabit Ethernet, a 100 Mbit/s Ethernet port, and support for external displays.
5. The Alpon X4 Edge comes with 8GB LPDDR5 RAM, 32GB eMMC storage, and can be powered via USB Type-C or standard power cables (9-30 volts), priced at €550.

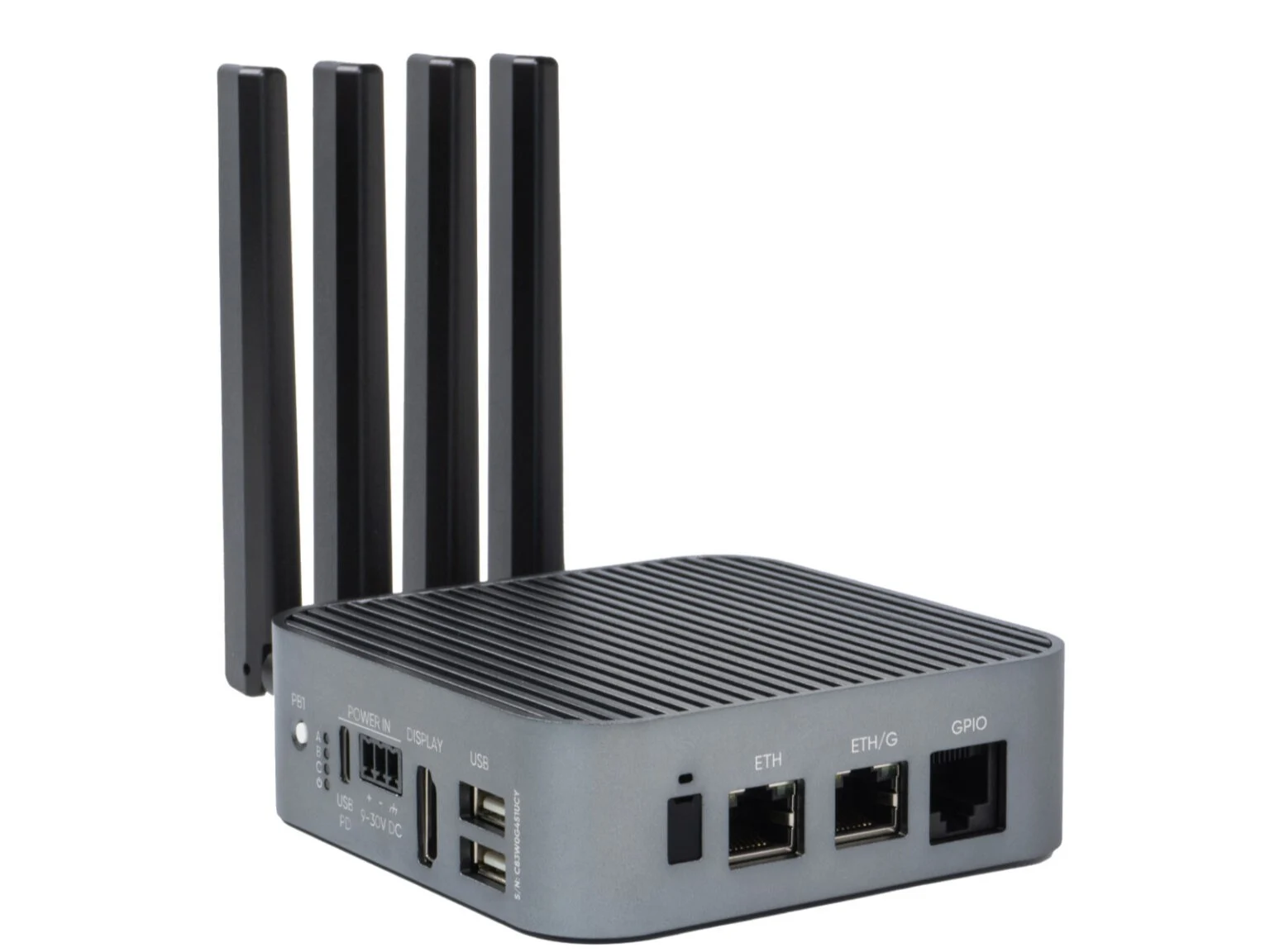

Sixfab has launched a new computer using the Raspberry Pi. More specifically, the Alpon X4 Edge is built on the Raspberry Pi Compute Module 4. The company, Sixfab, has integrated the Compute Module 4 into a dedicated motherboard, providing the typical ports within a user-friendly case.
Wireless Connectivity
You can spot the four external antennas designed for wireless connections, which likely enhances reception and ensures quick data speeds. This mini PC works with the standard 2.4GHz and 5GHz WiFi frequencies, in addition to supporting Bluetooth and even 4G LTE.
Dimensions and Mounting
When you take away the antennas, the computer measures approximately 4.4 x 3.9 x 1.3 inches. The Alpon X4 Edge is capable of being mounted on a DIN rail, a feature that is often utilized in industrial environments, where this mini PC might be employed to monitor or control various machines.
Additional Connectivity Options

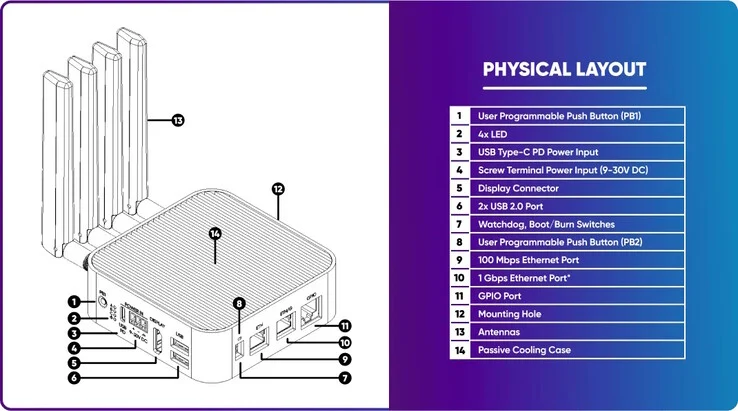

With an appropriate add-on board, users can connect extra devices through GPIO. The base setup includes two USB 2.0 ports, Gigabit Ethernet, and an additional slower Ethernet port that operates at 100 Mbit/s. The mini PC also supports external display connections.
Furthermore, it can be powered using USB Type-C or standard power cables ranging from 9 to 30 volts. Lastly, the Sixfab Alpon X4 Edge, which supports 4G, features 8GB LPDDR5 RAM and 32GB eMMC storage, with an official price tag of €550.
