Key Takeaways
1. The Jonsbo N6 NAS chassis is compact and designed for significant storage, accommodating up to nine 3.5-inch SATA or SAS drives.
2. It features a dual-section design, separating the main system area from the storage section, suitable for NAS, workstations, or small servers.
3. The chassis has a sleek industrial look with a wooden veneer front panel and includes multiple connectivity options, such as USB-C and USB-A ports.
4. Cooling capabilities include two 120 mm fans, space for up to seven fans, and support for a 240 mm radiator for liquid cooling.
5. It offers enhanced power features with a hot-swappable backplate, gold-plated SAS connectors, and multiple mounting options for power supplies.

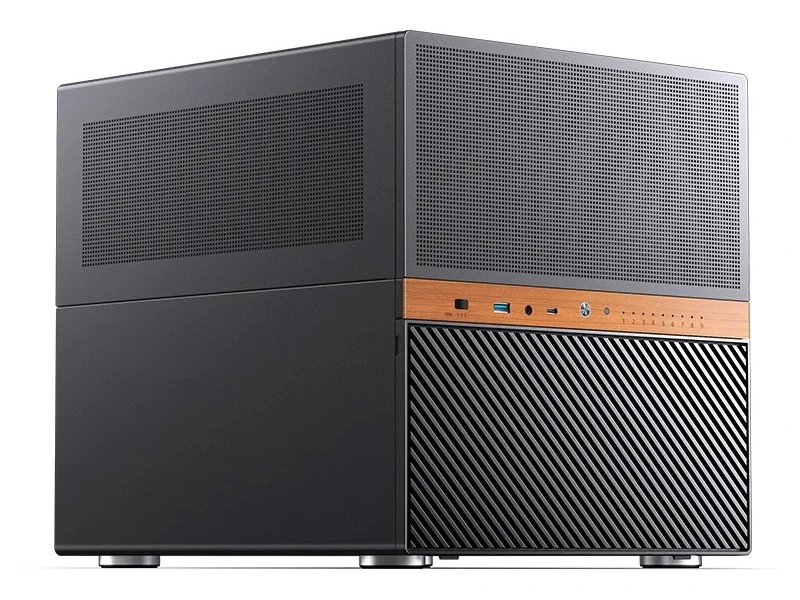

Jonsbo has introduced the N6 NAS chassis, a small but very efficient case aimed at those needing substantial storage without going for a big tower. Its design consists of two sections, keeping the main system area separate from the storage part. The lower section can hold up to nine 3.5-inch SATA or SAS drives, while the upper area is compatible with M-ATX motherboards. This makes it a good fit for anything from a dedicated NAS to a personal workstation or even a small server.
Dimensions and Appearance
The N6 has dimensions of 305 by 353 by 318 millimeters and sports a sleek, industrial aesthetic, featuring a wooden veneer panel that divides the two sections at the front. It comes with one USB-C port offering 10 Gbps, one USB-A port with 5 Gbps, a 2-in-1 audio jack, and a row of nine LEDs showing the drive status, plus a fan controller with three speeds. For cooling, there are two 120 mm dual ball-bearing fans located at the back of the lower bay, and there are extra mounts allowing for a total of up to seven fans. The upper area can accommodate graphics cards that are up to 320 mm long, and the front panel can hold a 240 mm radiator for those who opt for liquid cooling systems.
Enhanced Power Capabilities
The N6 is designed with a server-grade hot-swappable backplate that includes gold-plated SAS connectors and four power inputs, which feature dual SATA and dual PATA setups. This arrangement allows for more flexibility when powering multiple drives while ensuring stability even under heavy loads. Additionally, there are three different places to mount the power supply at the front top, rear top, and rear bottom, giving users the option to set up dual power configurations.
