  • piBrick Pocket-CM5: Raspberry Pi Handheld with AMOLED & Keyboard

    Key Takeaway

    – DIY handheld PC kit based on Raspberry Pi CM5, available under GPL 3.0 license
    – Features a BBQ20 keyboard with trackpad and a 3.92-inch AMOLED touch display (1080 x 1240)
    – Includes 5,000mAh battery, stereo speakers, microphone, headphone jack, and SSD/microSD support
    – Offers GPIO connectivity for sensors/actuators, plus a rotary control and five buttons
    – Estimated parts cost around $172, depending on the specific Raspberry Pi CM5 model

    The piBrick Pocket-CM5 is a new DIY handheld PC based on the Raspberry Pi CM5 that users can build themselves and that is available under the GPL 3.0 license. In addition to the Raspberry Pi CM5, suitably adapted PCBs are also required which is provided as templates and can then be manufactured by a suitable supplier.

    Keyboard and Display Specifications

    A BBQ20 keyboard is used that is intended to allow relatively fast text input, this keyboard also includes a trackpad. A 3.92-inch AMOLED display is installed which can process up to five touch inputs at the same time and is connected via MIPI-DSI, the resolution is relatively high at 1080 x 1240 pixels that could have a positive effect on interface usability.

    Physical Controls and Battery

    Even so, the 560-nit display is still significantly smaller than that of a smartphone. There is also a rotary control on the side, along with five buttons. A 5,000mAh battery is used, meaning the system can also be used on the go.

    Audio, Storage and IO

    Stereo speakers and a microphone are included, and there is also a headphone jack. An SSD can be installed, while a microSD card can also be used depending on the Raspberry Pi CM5 model version. Sensors and actuators can be connected via GPIO, the parts are listed at around $172 although this is likely to depend heavily on the specific Raspberry Pi version used.


    Sources

    Tags: , , , ,
  • $35 Carrier Board Turns Raspberry Pi CM5 into Advanced TV Stick

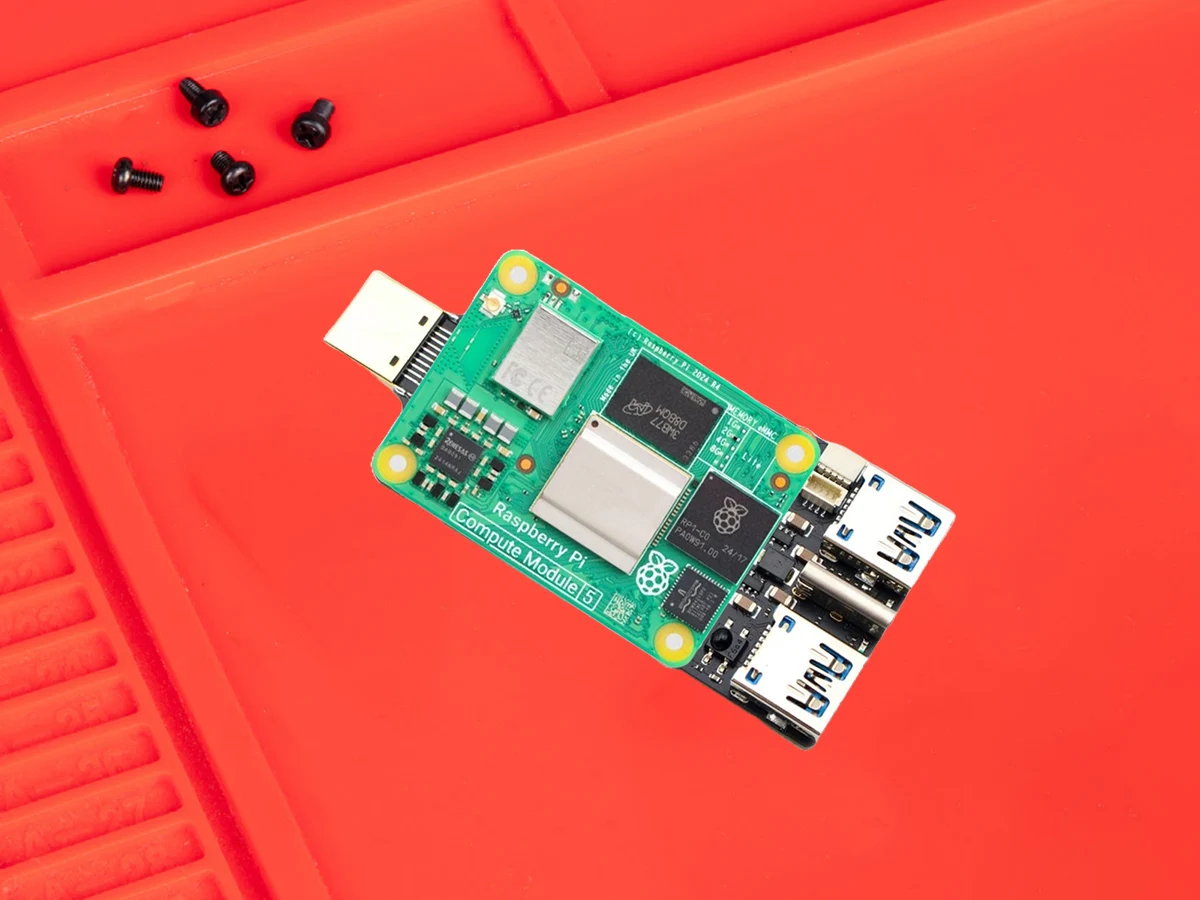

    $35 Carrier Board Turns Raspberry Pi CM5 into Advanced TV Stick

    Key Takeaway

    1. The CM5 TV Stick Lite transforms the Raspberry Pi Compute Module 5 into a portable, smart TV-like device with HDMI support, suitable for various applications like retro gaming or media streaming.
    2. It offers multiple interfaces, including USB ports, microSD slot, IR receiver, and fan connector, enhancing its expandability and versatility.
    3. The setup is powered via USB-C and is compatible with different RAM and storage configurations, though higher-end options can be costly.
    4. Compared to commercial TV sticks, this solution is more flexible but also more expensive, with a starting price of $35 for the carrier board.

    Introduction to the New Raspberry Pi CM5 Carrier Board

    Makerfabs has rolled out a fresh carrier board specifically made for the Raspberry Pi CM5, and it is quite a game-changer for hobbyists and tech enthusiasts alike. As shared by @Magic__smoke, this device can turn your Raspberry Pi Compute Module 5 into an actual TV stick, which is pretty impressive. The board, name CM5 TV Stick Lite, comes with a handy HDMI port so you don’t need any extra cables for connection purposes.

    Features and Connectivity Options

    This setup kinda resembles the popular TV sticks like the Amazon Fire TV Stick but has much more to offer. It runs on USB-C power, which is normal these days. What makes it interesting is that by pairing it with the Raspberry Pi CM5, you really get a portable system that can startup simply with a USB-C power source and connect to an external monitor or TV easily. The carrier board offers multiple interfaces including a MicroSD slot, 2 USB Type-A ports, an IR receiver for remote control, a fan connector, and more, making it a very flexible option for many projects.

    Potential Uses and Pricing Details

    Because it’s powered by the Raspberry Pi CM5, you can do lots of things. For example, it could be a compact retro gaming station with RetroPie installed. Or, transform your TV into a smart TV setup with Kodi. But bear in mind, the Raspberry Pi CM5 base model starts at around $67.50 for 2GB RAM without storage, where the MicroSD slot becomes necessary. If you want a more powerful setup with 16GB RAM and 64GB eMMC, it costs well over $325, which makes the whole project quite the investment.

    Summary and Final Thoughts

    For those experienced in building DIY electronics, this board makes a lot of sense because of its broader OS support and expandability options. However, for average users or those looking for a budget-friendly TV stick, alternatives like the Fire TV Stick, Xiaomi TV Stick, or Roku Streaming Stick (currently listed at $17.99) might be a better fit. Currently, Makerfabs offers this carrier board at a price of $35, making it a more affordable way to customize a media center or portable device. Overall, this project holds promise for tech enthusiasts eager to experiment and build their own smart TV solutions or portable computers.


    Sources

    Tags: , ,
  • Raspberry Pi Compute Module 5 Launches with 16 GB RAM Upgrade

    Raspberry Pi Compute Module 5 Launches with 16 GB RAM Upgrade

    The Raspberry Pi Foundation is wrapping up the year with lots of activity. To summarize, they launched the Touch Display 2 in early November, quickly followed by the Raspberry Pi SSD Kit and USB 3 Hub. Just earlier this week, they also unveiled the Pico 2 W.

    New Developments

    In the meantime, signs pointed to the fact that the Foundation was working on a new version of the Raspberry Pi Compute Module 4 (currently $39 on Amazon). Now, the Raspberry Pi Compute Module 5 (CM5) is officially announced, and the Foundation confirmed that it will offer a model with 16 GB of LPDDR4X RAM as well.

    Specifications

    For context, the Raspberry Pi CM5 begins with 2 GB of RAM, keeping the same dimensions as its predecessor at 55 x 40 x 4.7 mm, complete with M2.5 mounting holes. There’s also the option to have either 4 GB or 8 GB of RAM. You can choose it with 0 GB (CM5 Lite), 16 GB, 32 GB, or even 64 GB of eMMC flash storage. Additionally, the Raspberry Pi CM5 can come with an optional Bluetooth 5.0 and Wi-Fi 5 module.

    Enhanced Features

    Moreover, the Foundation has implemented a Broadcom BCM2712 chipset and includes a PCIe 2.0 x1 interface, Gigabit Ethernet, and two HDMI 2.0 ports that allow for 4K/60 Hz video output. The Raspberry Pi CM5 also has USB 3.0 interfaces and 30 GPIO pins for connecting various devices, so check out the Foundation’s announcement for more details.

    In summary, the Raspberry Pi CM5 is priced at $45 in the United States. Alongside the new board, there are accessories available such as an I/O board, an I/O case, an antenna kit, and a cooling solution. Sadly, the 16 GB RAM version of the Raspberry Pi CM5 won’t be available until sometime next year.

    Source: Link,Link

    Image 1
    Image 1
    Image 1
    Image 1
    Tags: ,
  • Raspberry Pi Compute Module 5 Launching Soon with 16GB RAM

    Raspberry Pi Compute Module 5 Launching Soon with 16GB RAM

    Little more than a month has gone by since the first hints about the Raspberry Pi 500 showed up online. Since that time, the Raspberry Pi Foundation hasn’t said anything officially about replacing the Raspberry Pi 400 (currently priced at $70 on Amazon). However, they have introduced new accessories for their current single-board computers (SBCs), including the Raspberry Pi 5, which we have covered in a separate article.

    Next Steps for SBCs

    It appears that the Raspberry Pi 500 will not be the next SBC to come from the Foundation. Instead, we might see a new version of the Compute Module 4 (CM4). Similar to the Raspberry Pi 500, the Raspberry Pi CM5 has not been confirmed yet. Still, this System on Module (SOM) has made an appearance at electronicaFair 2024 in Munich.

    Details and Expectations

    At this moment, we only have one photo to refer to. But even with that, some details can be figured out. For instance, it seems the Raspberry Pi CM5 keeps the same overall look as its predecessor. Moreover, there are signs on the SOM indicating that the Foundation might offer 1 GB, 2 GB, 4 GB, and 8 GB RAM options.

    Interestingly, there’s an area for a fifth RAM option, which would likely be a 16 GB variant. Also, other labels suggest that there will be eMMC options of 8 GB, 16 GB, 32 GB, 64 GB, and 128 GB, along with a Broadcom BCM2712 chipset. It’s reasonable to think that the Foundation is close to officially revealing the Raspberry Pi CM5, especially since it was shown at electronicaFair 2024 with a related IO board.

    Source: Link,Link,Link
