  • Sapphire NITRO+ B650I Motherboard Launches with Wi-Fi 6

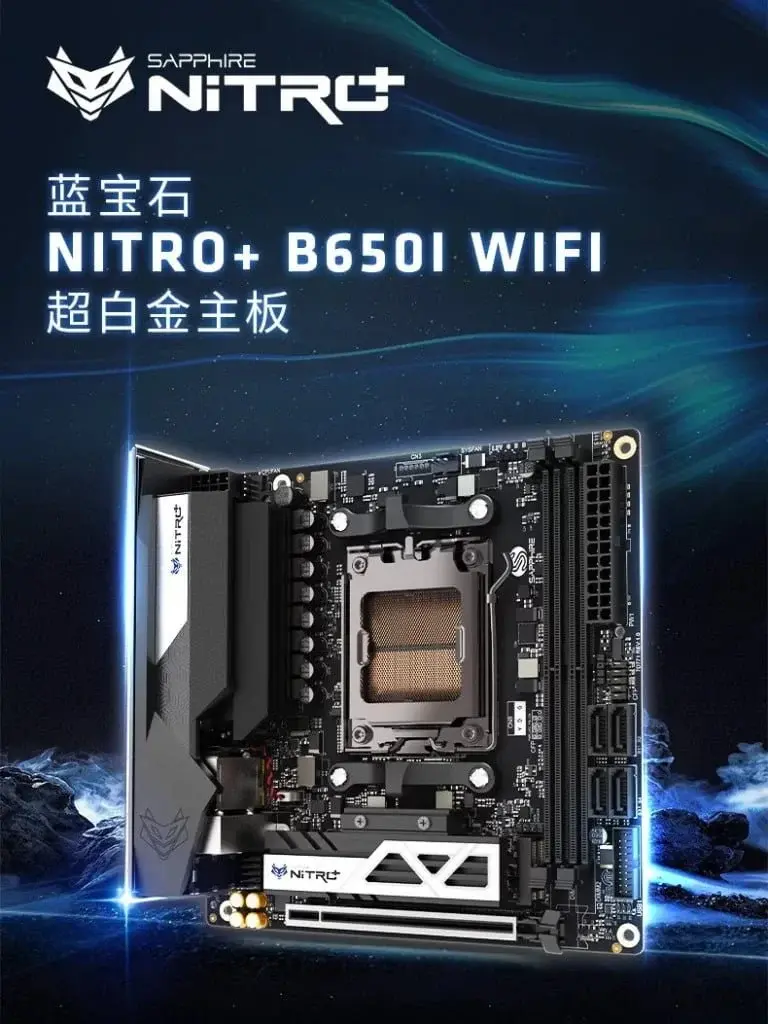

    Sapphire NITRO+ B650I Motherboard Launches with Wi-Fi 6

    Sapphire Technology has introduced the NITRO+ B650I WIFI super platinum motherboard priced at 1,689 Yuan (~$233), succeeding the NITRO+ B550I launched last year. Let's delve into the features of this new offering.

    Key Features of NITRO+ B650I WIFI:

    The NITRO+ B650I WIFI showcases an 8-layer PCB, an 8-phase digital power supply layout, and highlights the Infineon XDPE 192C3B PWM solution along with the Power Stage 70A Dr.MOS. It is built on the AMD AM5 platform, providing compatibility with AMD Ryzen 7000 series processors.

    Memory and Storage:

    This motherboard accommodates 2 x DDR5 6000 MHz memory modules (up to 96GB capacity) with overclocking support. In contrast, its predecessor, the Sapphire NITRO+ B550I, supported DDR4 memory up to 4600 MHz. For storage, it offers 2 Gen4 x 4 M.2 slots and 4 SATA 3 interfaces, along with Wi-Fi 6, Bluetooth, and a front USB 3.2 Gen 1 port.

    Cooling and Connectivity:

    To manage heat dissipation effectively, the power supply MOS and M.2 slot are shielded with armored heat dissipation technology. The motherboard includes two 4-pin interfaces each for the CPU fan and system fan, and for RGB lighting, it provides a 12V 4-pin and an additional 5V 3-pin interface, controllable through the Sapphire TriXX software.

    Sapphire has announced on the WeChat platform (as reported by ITHome) its intention to implement changes in non-graphics card product lines this year. In terms of connectivity, the NITRO+ B650I WIFI offers a range of ports including HDMI, DP, USB 2.0, USB 3.2 Gen2 interfaces (10Gbps), Type-C USB 3.2 Gen2 interface (20Gbps), CLEAR CMOS button, LAN RJ45, USB 3.2 Gen2 interfaces (5Gbps), WIFI antenna, and 7.1 channel audio interfaces.

    Tags: , ,
  • GM7-2602-02: Gitstar Reveals China’s First 32GB Native Memory Motherboard

    GM7-2602-02: Gitstar Reveals China’s First 32GB Native Memory Motherboard

    Gitstar Unveils Inaugural Locally Made Motherboard Series

    Gitstar, a prominent manufacturer of PC hardware based in China, has recently introduced its premier line of entirely domestically crafted motherboards. The flagship model, GM7-2602-02, symbolizes a noteworthy achievement within China’s tech sector, emphasizing the significance of technological self-sufficiency.

    Technical Details

    The GM7-2602-02 motherboard adopts a mini-ITX (M-ITX) form factor, with dimensions of 170mm x 170mm and a weight of around 200g. Its compact design renders it ideal for compact computer casings. Fueling the GM7-2602-02 is the Phytium Feiteng D2000 octa-core processor, reaching speeds up to 2.3GHz, ensuring efficient performance across a diverse array of computing tasks.

    A standout attribute of the GM7-2602-02 motherboard is its capacity for up to 32GB of locally sourced memory. Equipped with dual-channel SODIMM memory slots compatible with DDR4 and LPDDR4 memory variants, users benefit from both flexibility and the potential for high-speed operations.

    Connectivity and Expansion Capabilities

    The GM7-2602-02 motherboard provides diverse connectivity options to fulfill various requirements. It incorporates a PCIe 3.0 x16 slot, a PCIe 3.0 x1 (M.2) slot, and a PCIe 3.0 x1 (MINIPCIE) slot, allowing ample space for expansion. For storage needs, there are two SATA power connectors. Additionally, the board includes four USB 3.0 ports for chassis expansion, enhancing its versatility for connecting multiple peripherals.

    Onboard Features and Interfaces

    Regarding onboard features, the GM7-2602-02 motherboard presents one LVDS connector, three CAN connectors, three TTL serial ports, two RS232 connectors, and two RS485 connectors. Externally, it offers a 12V DC input, one VGA port, one HDMI port, two USB 3.0 ports, two gigabit Ethernet ports, and a comprehensive array of audio interfaces. With this diverse assortment of ports, the motherboard can proficiently manage various display outputs and network connections.

    Security Measures and Software Compatibility

    The GM7-2602-02 motherboard is engineered with independently developed secure firmware, ensuring heightened security and reliability. It also supports national operating systems like Galaxy Kylin, Tongxin UOS, and Ubuntu, thereby granting users a range of software options.

    Pricing and How to Acquire

    Priced at 4880 Yuan ($688), the GM7-2602-02 motherboard is accessible for purchase on JD.com. Gitstar presents customization choices, which include an expansion board, to address specific user prerequisites and simplify maintenance procedures.

    The launch of Gitstar’s GM7-2602-02 motherboard series symbolizes a significant advancement for the Chinese tech landscape, underlining the nation’s dedication to autonomous technology production. With its impressive specifications and versatile attributes, this motherboard is well-positioned to cater to a broad spectrum of user needs.
